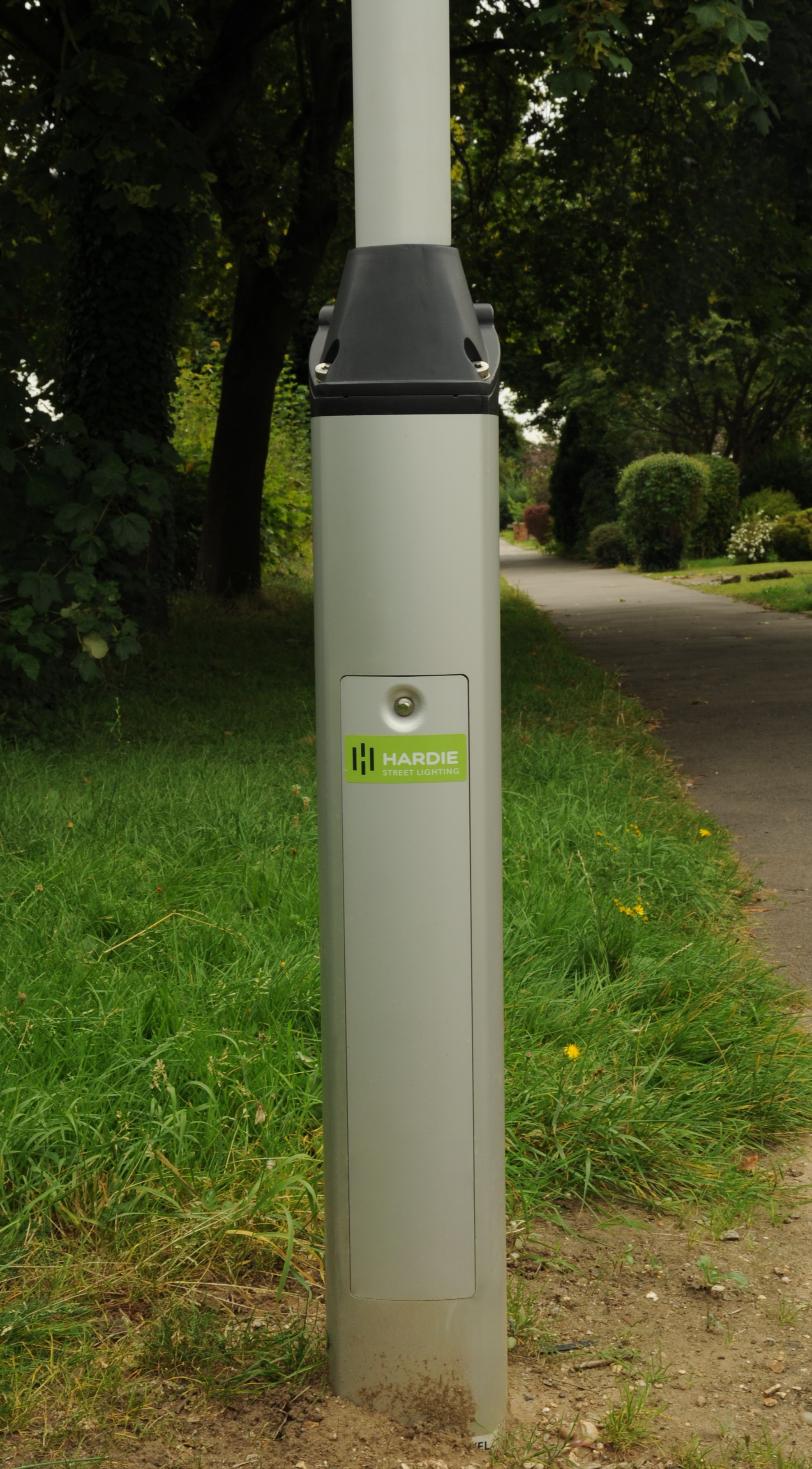

THE 150 COLUMN
The perfect aluminium column fit for all use cases.
Excellent Corrosion Resistance
Our uniquely designed and patented aluminium extrusions provide immense strength and flexibility both for full height columns and over-sleeve solutions. Hardie columns have a projected lifetime in excess of 35 years, providing a usable life
of over 3 times that of steel columns and thus minimising the cost and disruption of replacement every twenty five years.
ECONOMIC BRILLIANCE
Aluminium has exceptional green credentials as well. It can be recycled and reused for the same purposes because unlike many alternative materials, aluminium does not lose its special properties when recycled.
Strength in layers

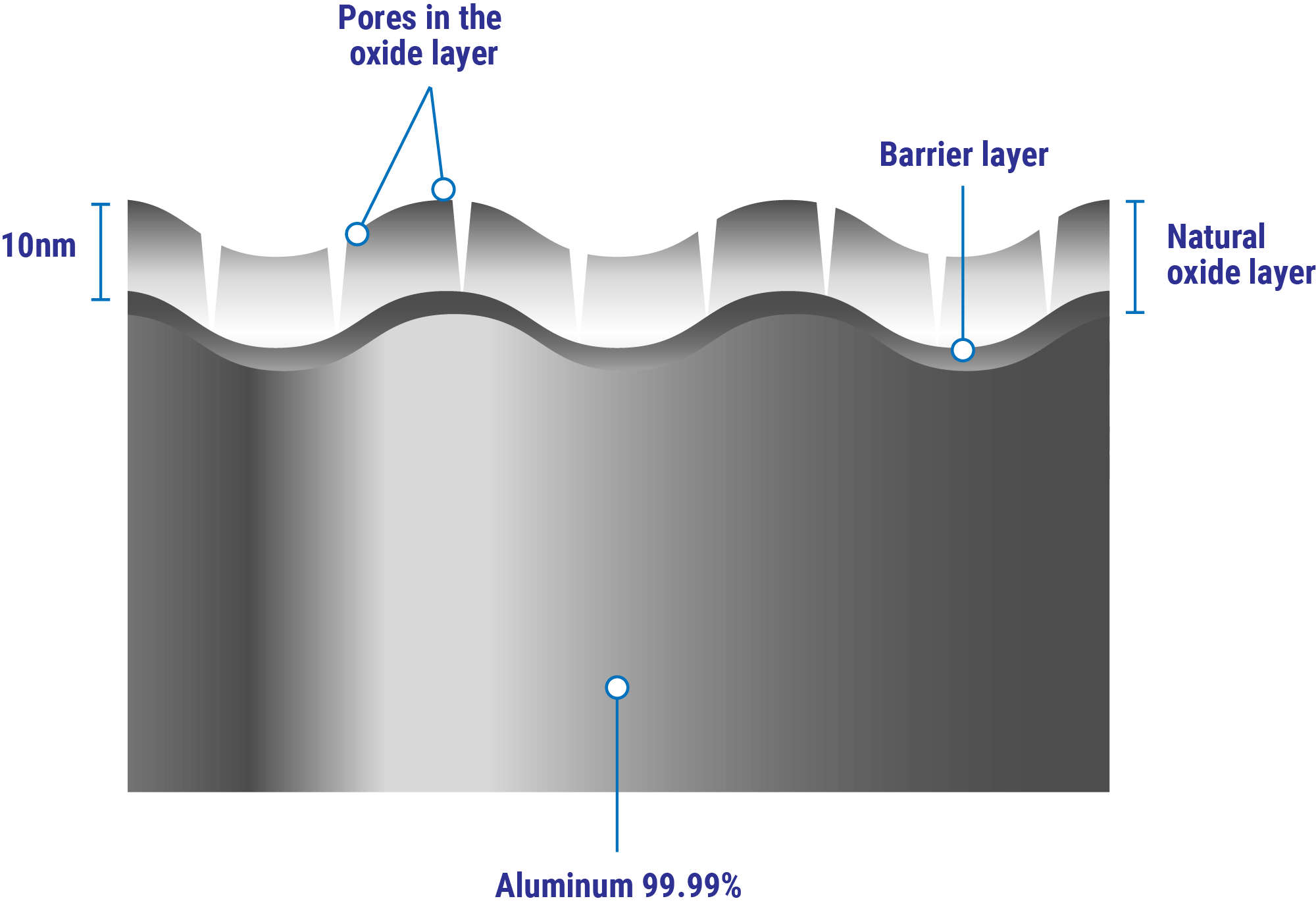

When aluminium corrodes, the oxide produced is only “skin deep” and it goes no further. In fact it tends to protect the aluminium! This is the opposite of steel which once it starts corroding (forming iron oxide) the rust continues all the way through the material until its eventual disintegration.

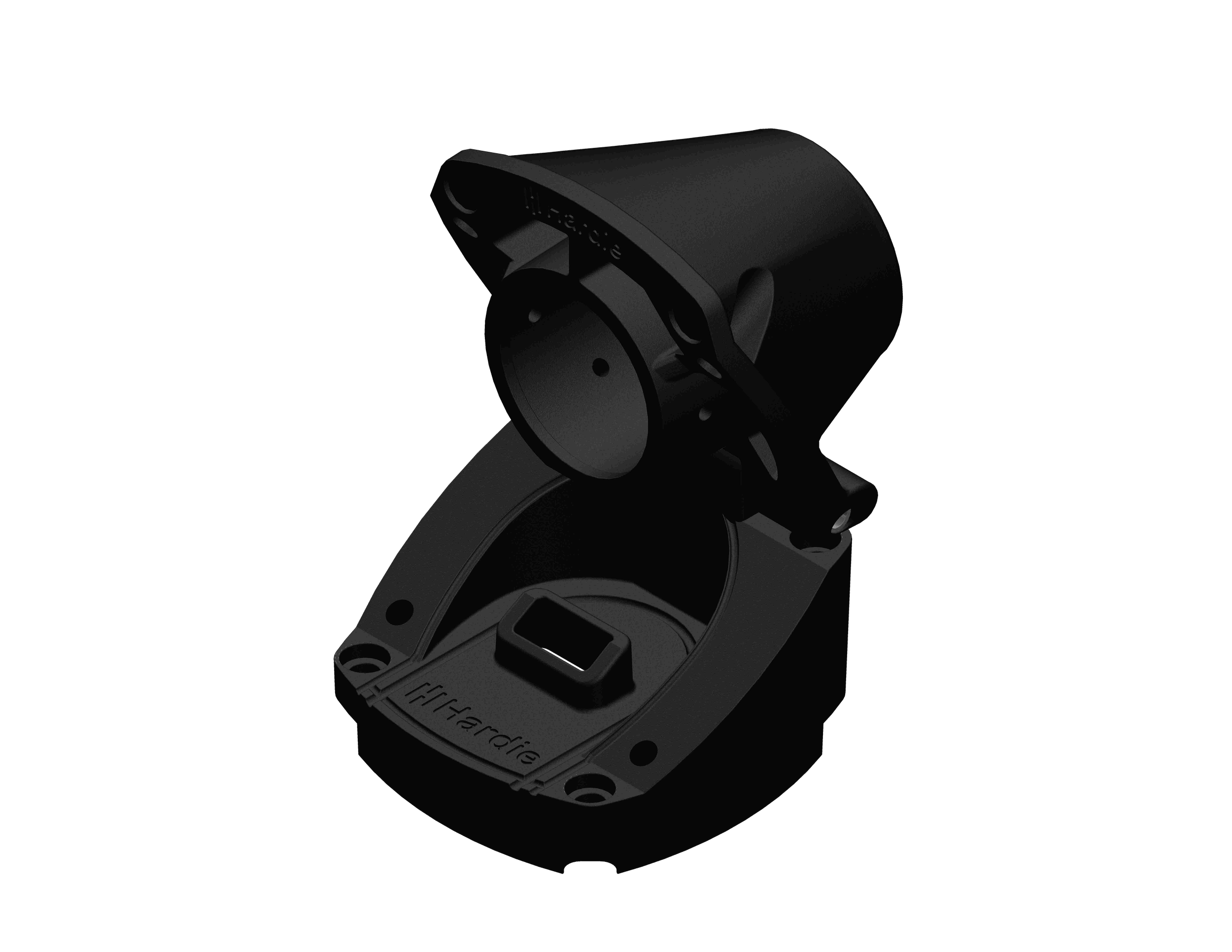

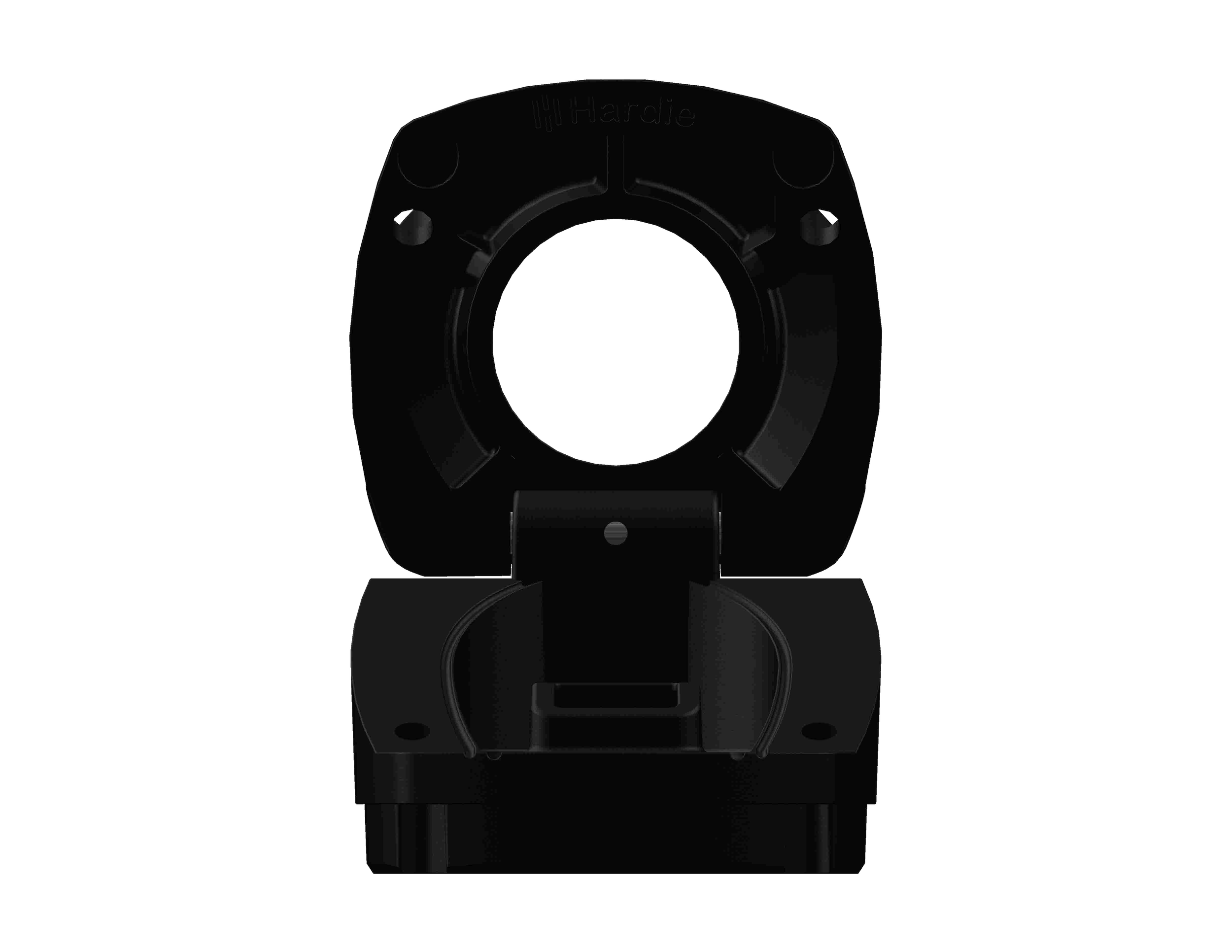

Modular hinged construction
Suitability to the relevant codes of BS EN 40 and Vol 2 Section 2 Part 1 BD 94-07 of the Design Manual for Road and Bridges
Column weight - Top Pole & Base at 16.5kg
Lightweight
Can be transported using a long wheelbase van: heavy vehicles are not necessary
Low Transport Cost

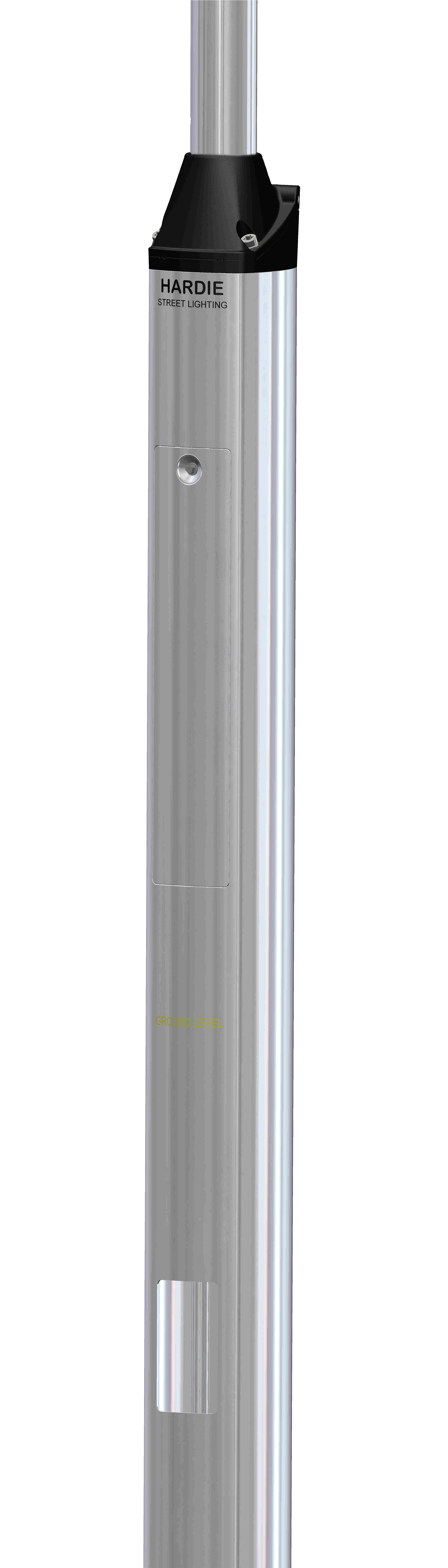

A slim body, superior strength
150mm base diameter, reducing to 76mm column tube.
EXPLORE THE COLUMN
Just press and hold the model to explore
Specifications
-
In compliance with the Regulation (UK) Statutory Instrument 2019 No 465 of the United Kingdom Parliament (Construction Products (Amendment etc.) (EU Exit) Regulations or CPR), this certificate applies to the above construction product. This certificate attests that all the provisions concerning the assessment and verification of constancy of performance described in Annex ZA of the above standard(s) under system 1 for the performance set out in this certificate are applied and that the factory production control conducted by the manufacturer is assessed to ensure the constancy of performance of the construction product. This certificate was first issued on the date below and will remain valid as long as neither the designated standard, the construction product, the AVCP methods, nor the manufacturing conditions in the plant are modified significantly, unless suspended or withdrawn by the approved product certification body.
-
Hardie Secure Products Ltd HSP 150mm Lighting Column has been designed to give reliable operation for many years. The operating, safety, and maintenance instructions given in this Installation Operation and Maintenance Manual will help keep your lighting column in good working order and condition.
Who should use this manual
All persons who install, operate, and maintain the lighting column must be suitably trained, competent, and qualified to do the work.
All work must be done in accordance with an approved risk assessment and method statement. Hardie Secure Products Ltd recommends that maintenance is done in accordance with this manual.
-
Read the analysis booklet for a short put together showcase of the column, it’s dimensions, parts and torque settings, all given to you without having to read an entire manual.
-
Our manufacturing by press metal has been approved and carefully processed by several sources to assure high quality aluminium is being used for the columns.
You can find their certificates, data sheets & standards below
-
Webb Yates Engineers Limited (WYE) has been appointed by Hardie Secure Products LTD (HSP) to conduct a structural appraisal on the 6m and 5m high HSP150 hinged lighting columns. The appraisal is to ensure the suitability of the lighting column to the relevant codes of BS EN40 and Vol 2 Section 2 Part 1 BD 94-07 of the Design Manual for Road and Bridges. The full set of calculations can be found in the attached Appendix.
